Independently Tested
We are confident with our products. We want to make sure you are too. Our plywood are independently tested by Setsco for ES EN 310 Bending Strength Test, ASTM D 1037 Shearing Test and AS 2754.1 : 1985 Bonding Quality Test. Plywood strength and bonding is adhered to the highest standards of manufacturing.
Sustainable Resources
Our wood sources are either FSC or PEFC certified. Certified wood comes from responsibly managed forests, so is renewable. It is also reusable, and requires less energy to recycle than other materials. By buying our products, you are enforcing stringent requirements on environmentally responsible procurement practices.
Perfect Combination
Our mission is to create a film faced plywood that can produce the most cost efficiency pour per use. We have researched and tested over 20 different combination of materials and proud to present you the perfect film faced plywood with lowest cost per pour.
Quality Checks
We conduct stringent quality checks on every batch of our plywood. Plywood are randomly selected, cut and checked for thickness, moisture level, water boiling tests, density...etc to give you ease of mind that the product delivered is of high quality.
Products
Designed in Singapore, we meticulously tested over 30 different combinations of materials, thicknesses, and ratios to create four distinct versions tailored to various requirements. Here is what we have developed:
Specifications
Eco
Basic
Pro
Premium
Film
Double side black
Double side black
Double side dynea brown
Double side dynea brown
Edge colour
Black
Green
Maroon
Grey
Density
550kg/m3
550kg/m3
600kg/m3
630kg/m3
Core species
Mixed wood
Acacia
Acacia
Eucalyptus
Number of plies
9 / 11
7 / 11
7 / 11
11
Boiling water test
4 hours
10 hours
18 hours
> 72 hours
Number of uses
1 - 3 repetitions
8 - 12 repetitions
15 - 20 repetitions
5 - 8 repetitions
Sizes available
12 X 1220 X 2440mm
18 X 1220 X 2440mm
12 X 1220 X 2440mm
18 X 1220 X 2440mm
12 X 1220 X 2440mm
18 X 1220 X 2440mm
18 X 1220 X 2440mm
Production
10+
COUNTRIES
Exported
120+
EMPLOYEES
500,000+
PIECES SOLD ANNUALLY
120,000 SQ FT
FACTORY
01. Veneers selection
Veneers are purchased from sawmills and transported to the factory for further selection. The moisture levels are measured and recorded manually.
02. Veneers drying
Natural veneers typically have a moisture content of 35-45%. By utilizing hot press machines to dry the veneers to 0% moisture, consistent and strong bonding with the glue is ensured, and warping of the end product is eliminated.
The layered plywood boards are then sent for hot pressing to permanently solidify the product structure.
.jpg)
03. Veneers laying
After being evenly coated with water-resistant glue, veneers are arranged in layers with each layer's wood grain oriented perpendicularly to the previous one. This arrangement ensures the plywood's shear strength and elasticity.
.jpg)
.jpg)
04. Cold pressing
Cold pressing establishes the product structure before the permanent hot pressing process.
05. Hot pressing
06. Surface treatment
The surface is inspected, and a specially formulated wood putty is applied for treatment.
07. Sanding & cutting
The core plywood is sent for sanding to smooth the surface. The edges are then trimmed to prepare the surface for film coating.
08. Film lamination
Plywood is laminated with phenolic film paper to ensure easy release and allow for multiple uses during concrete pouring.
09. Edge treatment
The edges of the board are sealed with wood putty and then spray painted to enhance moisture resistance and durability.
10. Quality Inspection
The plywood undergoes thorough inspections for surface thickness, smoothness, and a boiling water test. Any pieces that do not meet the standards are rejected.
11. Packing
High-quality plywood boards are packed, bundled and prepared for delivery
Independently Tested
We are confident with our products. We want to make sure you are too. Our plywood are independently tested by Element Testing for ES EN 310 Bending Strength Test, ASTM D 1037 Shearing Test and AS 2754.1 : 1985 Bonding Quality Test. Plywood strength and bonding is adhered to the highest standards of manufacturing.
Sustainable Resources
Our wood sources are FSC certified. Certified wood comes from responsibly managed forests, so is renewable. It is also reusable, and requires less energy to recycle than other materials. By buying our products, you are enforcing stringent requirements on environmentally responsible procurement practices.
Perfect Combination
Our mission is to create a film faced plywood that can produce the most cost efficiency pour per use. We have researched and tested over 30 different combination of materials and proud to present you the perfect film faced plywood with lowest cost per pour.
Quality Checks
We conduct stringent quality checks on every batch of our plywood. Plywood are randomly selected, cut and checked for thickness, moisture level, water boiling tests, density...etc to give you ease of mind that the product delivered is of high quality.
Guidelines for maintenance
We recommend the following guidelines to extend the reusability of plywood panels. Number of reuses will vary based on the specific application, service conditions, form maintenance and handling, and the quality of form release.
After cutting the panel, apply an acrylic-based water-resistant paint to the edges to prevent swelling caused by moisture.
When removing the shuttering, ensure the plywood panels are neither dropped nor dragged on the ground.
Apply a light coat of a high-quality oil-based form release agent before each concrete pour.
Properly stack and store the plywood panels on a sheltered and even surface both before and after use.
Inspect your plywood panels after each concrete pour and clean off any concrete residue. Avoid reusing severely damaged panels. Panels with light damage can be repurposed for making extensions.
Seal all holes drilled during installation with silicone adhesive to prevent swelling from moisture.
About
Over the past two decades, the founders of L.T.M Corporation Pte Ltd have been dedicated to supplying high-quality building materials to the Singapore market.
With a keen focus on understanding the needs and preferences of our clientele, we have conducted extensive research and analysis of the film faced plywood market in Singapore. Our comprehensive study includes over 2,800 viewings by 1,300 plywood buyers and valuable feedback from more than 340 film faced plywood users.
​
Our commitment to excellence has driven us to visit more than 30 plywood factories across the globe, including those in Malaysia, China, Indonesia, the USA, and Vietnam. Through these visits, we meticulously evaluated and shortlisted the two most qualified factories for collaboration. Ultimately, we invested in one of these partner factories to ensure that our customers receive the highest quality and most consistent products. Our dedicated quality inspectors carry out stringent and routine checks to uphold our production and process standards, guaranteeing the reliability and durability of our offerings.
​
Our relentless pursuit of perfection led us to test over 30 combinations of materials and layers. This rigorous process has culminated in the creation of Duroply, our premium film faced plywood.
Duroply represents the pinnacle of our efforts, offering unmatched quality and performance to meet the demanding needs of our customers.
Certifications
Please approach our sales representatives for the certification copies
Projects Reference
Neem Tree @ Balestier
Neem Tree is a freehold private residential condominium located at balestier with a total of 84 units, 17 storeys high.
GCB @ Cluny Hill
A rare Good Class Bunglalow situated in cluny hill, private residential project.
Mandai Depot
Mandai Depot is a full maintenance train depot located in Mandai and should be operational from year 2019 onwards.
Cayman Residences @ East Coast
Cayman Residences is a freehold development landed property located at East Coast. It consists of 3 storeys semi detached with 19 units.
Le Quest @ Bukit Batok
Le Quest Condo is a mixed development with a total of 516 prime units located at Bukit Batok. It consists of 5 blocks of 16 storeys with retail shops and restaurants.

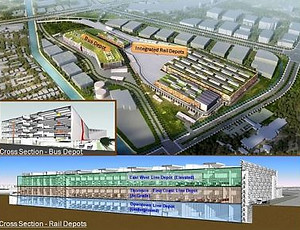

East Coast Integrated Depot
East Coast Integrated Depot is the first in the world to integrate three train depots and one bus depot within a single site of 36 hectares.
Jurong Port Administration Building
Jurong Port Admin Building is a commercial property primarily used for Office rent and sale.
Forest Woods @ Serangoon
Forest Woods is a private condominium situated at Serangoon comprising of 519 units in a popular mature estate.
Panalpina @ Pioneer View
An industrial ramp up multi level warehouse sitting on 15000 square metres of land with total gross floor area of 30000 square metres.
Waterhub Building @ Toh Guan
Additions and alternations to the existing waterhub office-commercial complex. Erection of a 6 storey office building.
Frasers Tower @ Cecil Street
Frasers Tower is a 38 storey office development that offers 663,000 sq ft of premium Grade A office space at the gateway to Singapore's CBD.
Thomson Line MRT
The Thomson Line was first announced in 2008. Several architectural and engineering consultancy packages were released in 2010 which indicated an increase in the number of stations from 18 in the initial announcement to the current 22 and length of the line from 27 km to 30 km.
